Data sheet

	B401
Camera streams
Traffic Survey / Adaptive Traffic Control / Barrier-free parking / Parking ANPR	4
Parking Single Space Detection	12
Video stream	Max. 1080p @ 30 FPS (H.264)
Stream protocol	IP/RTSP
Data output
Message protocol	MQTT
Data format	JSON
Data interfaces	MQTT; Data Center; Data Center API
Power supply
Connector	2.5 / 5.5 mm DC jack
Input voltage	12-48 V
Maximum power consumption	60 W
Recommended power supply	Mean Well MDR-60-12
Network
Connectivity	Gigabit Ethernet
Network configuration	DHCP
Mechanical

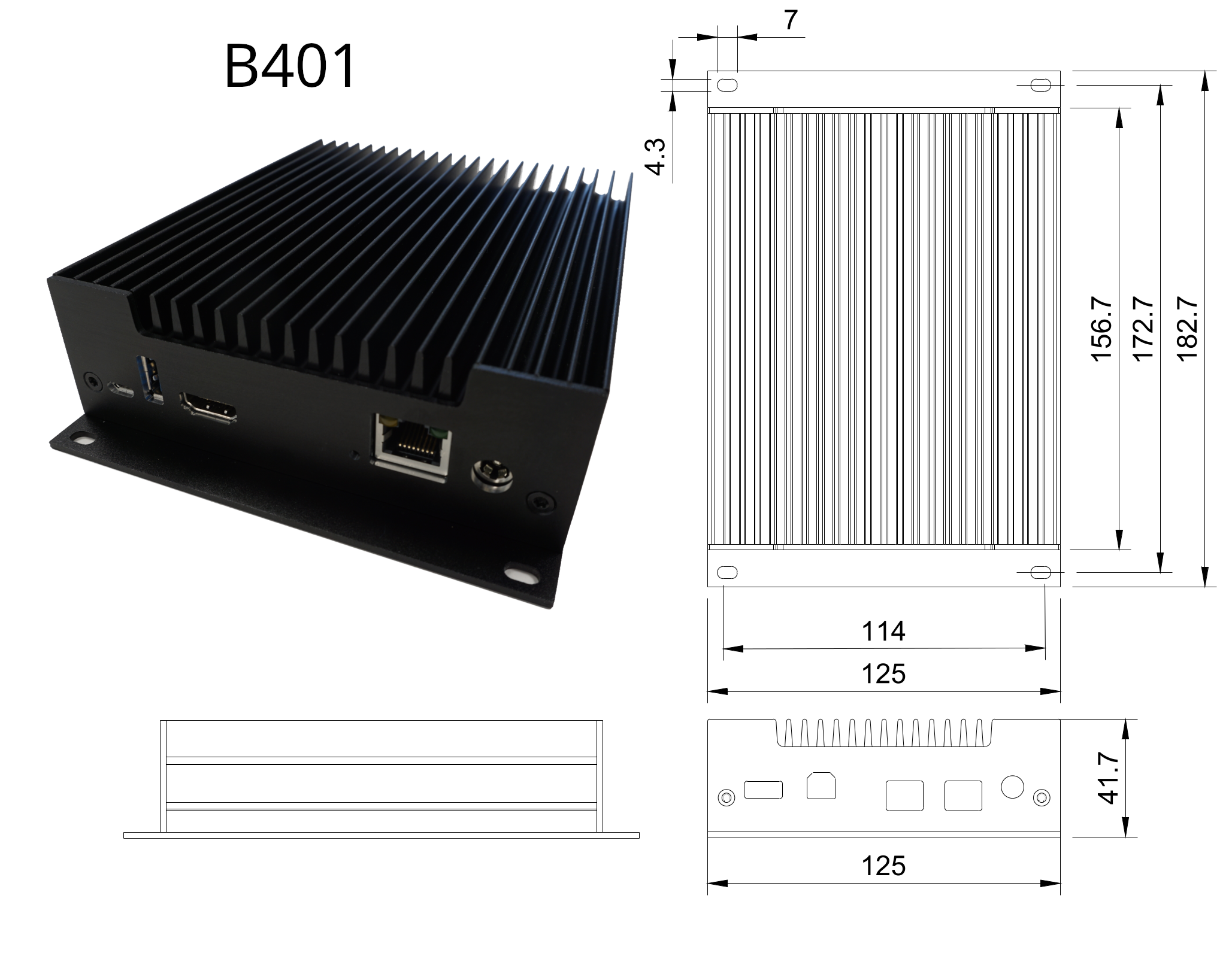

Dimensions	183 x 125 x 42 mm
Weight	0.8 kg
Mounting	Surface mounting; DIN rail (optional)
Environmental conditions
Operating temperature	0-50 °C
Operating humidity	≤ 95% at 25 °C

Data protection and security

The B401 processes personal data only temporarily, without storing it, and solely for anonymization. Processing is based on the operator's legitimate interest under Article 6(1)(f) GDPR. Only anonymized data is used for traffic management. The device complies with the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU. The resulting CE marking is attached to the underside of the device.

Disclaimer

Note

The supplier assumes no liability for compliance with local requirements or additional certifications that may be required in certain regions or markets. The purchaser or user is responsible for ensuring compliance with local regulations and requirements beyond the stated certifications.
